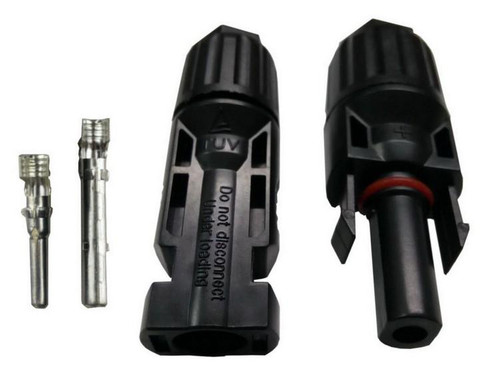

MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2

No reviews yet Write a Review
SKU:
TBD051384801A
UPC:
6922710424663
Availability:
available
Now: $7.00
Was: $9.00

Model Number:EUConnection:Plug InOutput Type:DCBrand Name:ZOORUIUsage:Electric ToolOutput voltage:DC1000VUsage:solarSpecificationProduct No:MC4Rated V…

  • i Quality & Low Price
  • i Trusted & Reliable Shipping
  • i Secure Checkout
bow
Process in 12 Hours
gray
Authenticity Guaranteed
sign
10+ In Stock
Adding to cart… The item has been added
Description
  • Model Number:EU
  • Connection:Plug In
  • Output Type:DC
  • Brand Name:ZOORUI
  • Usage:Electric Tool
  • Output voltage:DC1000V
  • Usage:solar
Specification
Product No:MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85degree
Flame Class: UL94V - 0
